Product Overview

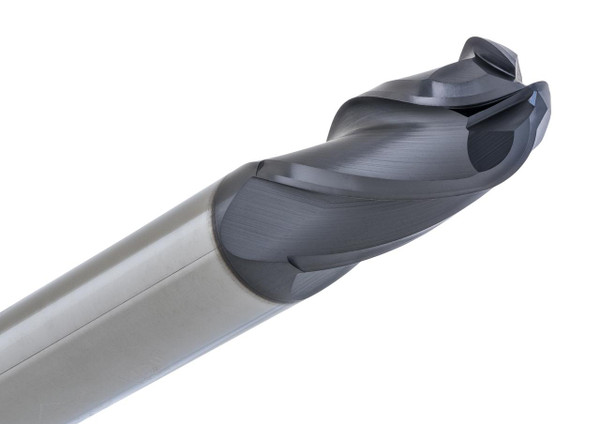

Clean profile work at 15/64" diameter, that's the 142-2344-ALTiN with its .1172" radius. This 4-flute ball end mill gives the cutter a smooth rounded form for pocket blending, surface finishing, and curved detail work at a scale between the smaller and mid-size offerings.
ALTiN coating helps the tool handle heat and wear better in more demanding applications than a bare carbide equivalent. With a 30° helix and single-end design, this 142 Series cutter gives steady performance across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 15/64"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .1172"
- Series: 142 Series
- Part No: 142-2344-ALTiN
Key Performance Features:
- 4-flute ball end built for profile and contour work
- .1172" radius supports smooth, rounded features
- ALTiN coating improves heat and wear resistance
- 30° helix supports controlled, general-purpose cutting
- Handles finishing, blending, and curved pocket machining
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
