Product Overview

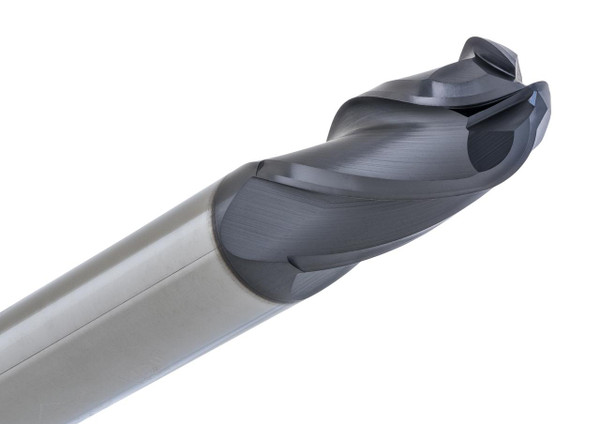

The CGS Tool 142-2812-ALTiN is a 9/32" diameter 4-flute solid carbide ball end mill built for profile and contour work, with a .1406" radius that gives a smooth rounded cutting form for curved pockets and surface blending.
The ALTiN coating adds heat and wear resistance under tougher machining conditions, and with a 3/4" length of cut, 2-1/2" overall length, and 30° helix, this 142 Series cutter gives controlled ball-end performance in compact CNC features across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 9/32"
- Shank: 5/16"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .1406"
- Series: CGS 142 Series
- Part No: 142-2812-ALTiN
Key Performance Features:
- Contour and profile milling handled by a 4-flute ball end design
- .1406" radius supports smooth rounded surface work
- ALTiN coating adds heat and wear resistance
- 30° helix gives controlled, general-purpose cutting
- Suited to finishing, blending, and curved pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
