Product Overview

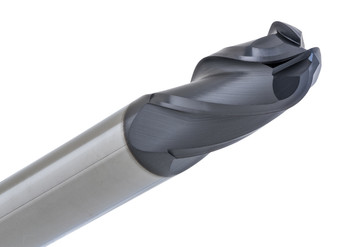

Mold work and 3D surfacing on a 1/2" diameter get a a coating boost with the CGS Tool 142-5000-ALTiN, its 4 flute ball end mill from the single end 142 Series, made for more accurate curved surface tasks.
The ball nose handles radius cuts cleanly, and ALTiN coating protects the edge through demanding milling conditions. Solid carbide construction handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .250"
- Helix: 30°
- Design: Single End
- Series: CGS 142 Series
- Part No: 142-5000-ALTiN
Key Performance Features:
- 4-flute ball end design for contouring, profiling, and finishing
- Ball nose profile supports smooth 3D surfaces and radius details
- ALTiN coating helps improve heat resistance and cutting edge life
- 30° helix supports smooth cutting and controlled chip evacuation
- Solid carbide construction provides rigidity and repeatable accuracy
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for mold work, surface blending, finishing passes, and curved profile milling
