Product Overview

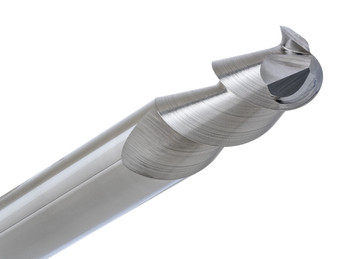

The CGS Tool 2009 has 1/4” diameter, 2-flute solid carbide square end mill. It's built for maximum material removal but also surface precision in aluminum, non-ferrous metals, and even plastics. It’s from the ferocious series so it’s meant for machinists who want top tier performance at extreme feed rates.
Made with premium sub-micro grain carbide, the 2009 has a 55° high helix so chips evacuate more smoothly, cutting forces stay lower, and the surface finishes look really sharp. The polished cutting edges plus a free-cutting geometry helps cut down built-up edges, while still keeping a strong tool life, even when you’re running high-speed CNC work.
Tool Specifications:
- Diameter: 1/4”
- Shank: 1/4”
- Length of Cut (LOC): 1-1/4”
- Overall Length (OAL): 3”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2009
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
