Product Overview

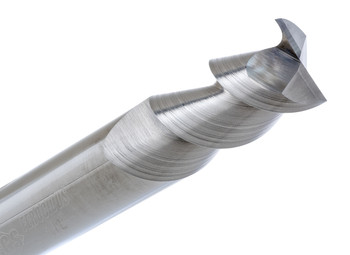

The CGS Tool 2012-S has a 5/16” diameter, 2 flute solid carbide square end mill. It is made for maximum material removal as well as that clean surface precision in aluminum, non-ferrous metals and plastics. It comes from the ferocious series, so it’s made for machinists who want high performance at truly extreme feed rates.
Made with premium sub micro grain carbide, the 2012-S has a 55° high helix which helps with chip evacuation, cuts down on cutting forces and it also gives an outstanding surface finish. The polished cutting edges and free cutting shape help reduce built up edge, while still keeping an exceptional tool life, even when you run it on high speed CNC applications.
Tool Specifications:
- Diameter: 5/16”
- Shank: 5/16”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 2-1/2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2012-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials
