Product Overview

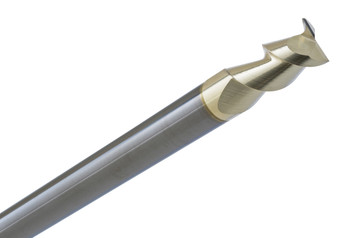

The CGS Tool 2018-S has a 3/8” diameter 2-flute solid carbide square end mill made for maximum material removal plus surface precision in aluminum, non ferrous metals, and plastics. Coming from the ferocious series, it is built for machinists that want really high performance even when they run extreme feed rates.
Manufactured with premium sub-micro grain carbide, the 2018-S includes a 55° high helix which helps with better chip evacuation, less cutting pressure, and really consistent surface finishes. The polished cutting edges, paired with a free-cutting style geometry, helps reduce built-up edge, while still keeping tool life outstanding, even for high speed CNC work.
Tool Specifications:
- Diameter: 3/8”
- Shank: 3/8”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 2-1/2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2018-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials
