Product Overview

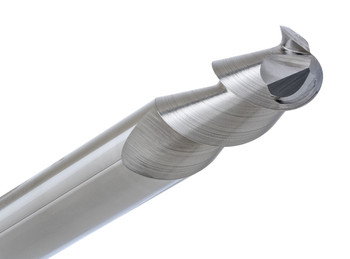

The CGS Tool 2018 has a 3/8” diameter, 2-flute solid carbide square end mill, made to squeeze out maximum material removal and still keep surface precision especially in aluminum, non-ferrous metals and plastics. It comes from the ferocious series, so it’s aimed at machinists who want high performance at those extreme feed rates, you know?
Manufactured with premium sub-micro grain carbide, the 2018 has a 55° high helix that helps with better chip evacuation, lower cutting forces, and cleaner surface finishes. The polished cutting edges along with its free-cutting shape, help reduce built-up edge, and that in turn helps with exceptional tool life, even when it’s running high speed CNC jobs.
Tool Specifications:
- Diameter: 3/8”
- Shank: 3/8”
- Length of Cut (LOC): 1”
- Overall Length (OAL): 2-1/2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2018
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request

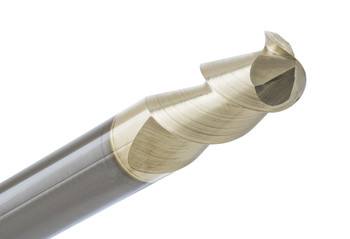

- ZrN coating option available for extended life and cleaner cuts
