Product Overview

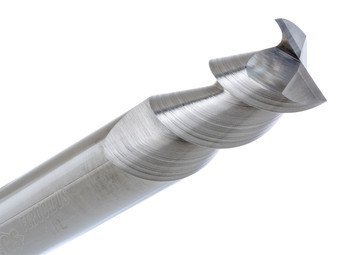

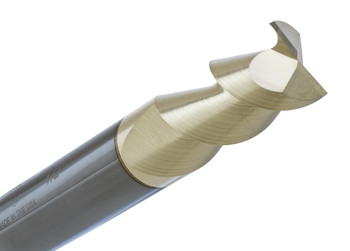

The CGS Tool 2039-S, has a 1/2” diameter 2-flute solid carbide square end mill. It is made for maximum material removal, but also surface precision, in aluminum, non-ferrous metals, and plastics. It comes from the ferocious series, so it is aimed at machinists who want top-level performance even when running at extreme feed rates, you know.
Made using premium sub-micro grain carbide, the 2039-S includes a 55° high helix that helps with chip evacuation, it also helps lower cutting forces and it delivers a really clean finish. The polished cutting edges, plus a free-cutting geometry, work together to minimize built-up edge, while still keeping exceptional tool life, even when you’re pushing high-speed CNC jobs.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 2”
- Overall Length (OAL): 4”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2039-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials
