Product Overview
The CGS Tool 2039 is a 1/2” diameter, 2-flute solid carbide square end mill. It is meant for maximum material removal, and surface precision, in aluminum plus other non ferrous metals and plastics. It comes from the ferocious series and it’s aimed at machinists who want top performance in feed rates.
Made with premium sub-micro grain carbide, the 2039 has a 55° high helix, which helps with chip evacuation, cuts down cutting forces, and keeps an outstanding surface finish. With polished cutting edges and a free-cutting geometry, it minimizes built-up edge without giving up tool life, even when you run high-speed CNC.
Tool Specifications:
- Diameter: 1/2”
- Shank: 1/2”
- Length of Cut (LOC): 2”
- Overall Length (OAL): 4”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2039
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request

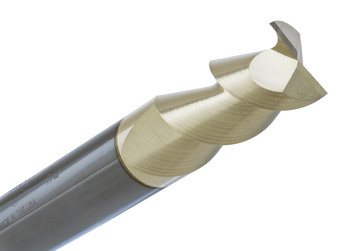

- ZrN coating option available for extended life and cleaner cuts
