Product Overview

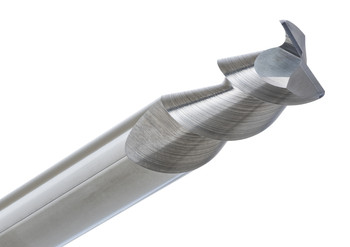

The CGS Tool 2048 has a 5/8” diameter, 2-flute solid carbide square end mill. It is made to push maximum material removal while keeping surface precision, especially with aluminum, non-ferrous metals, and plastics. It comes from the ferocious series, and it is meant for machinists who want top-tier output at extreme feed rates, no compromise.
Built using premium sub-micro grain carbide, the 2048 includes a 55° high helix that helps with chip evacuation, keeps cutting forces lower, and still delivers very clean surface finishes. The polished cutting edges, plus a free-cutting geometry, help cut down built-up edges while also keeping a great tool life, even when you run high-speed CNC work day after day.
Tool Specifications:
- Diameter: 5/8”
- Shank: 5/8”
- Length of Cut (LOC): 1-1/4”
- Overall Length (OAL): 3-1/2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2048
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
