Product Overview

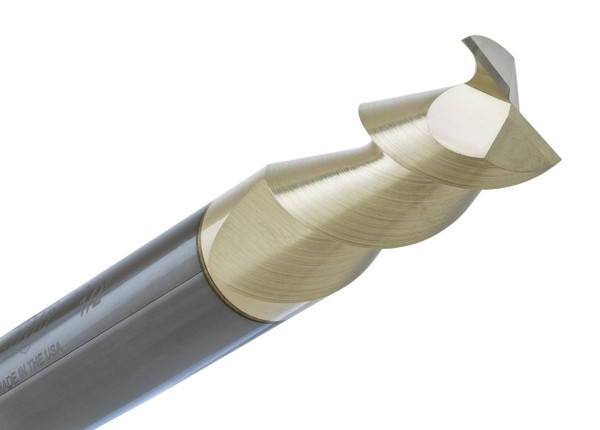

The CGS Tool 2054-S comes in a 5/8” diameter, two flute solid carbide square end mill. It is pretty much made for maximum stock removal and careful surface precision in aluminum, non-ferrous metals, and even plastics. From the ferocious series, this tool is aimed at machinists who need serious performance at extreme feed rates , not just “okay” results.
Made using premium sub-micro grain carbide, the 2054-S uses a 55° high helix so you get better chip evacuation, less cutting load , and those clean surface finishes that matter . The polished cutting edges plus the free-cutting geometry help cut down on built-up edges , while still keeping a strong tool life, even when it’s high speed CNC work and the path stays aggressive.
Tool Specifications:
- Diameter: 5/8”
- Shank: 5/8”
- Length of Cut (LOC): 2-1/2”
- Overall Length (OAL): 5”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2054-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials.
