Product Overview

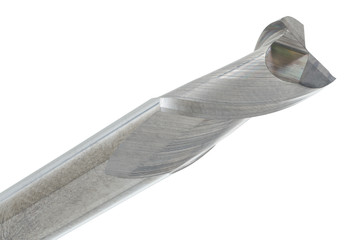

Strong general-purpose milling,2-flute with decent chip room, thats the 220-7500 at a 3/4" diameter. This 2 flutes square end mill takes on clean slotting, profiling, and plunge cutting along with sidewall milling and even flat-bottom tasks, where chip clearance matters as much as raw rigidity.
Made with a 30° helix plus a single-end style, this 220 Series cutter aims for steady material removal across typical CNC use. With an uncoated solid carbide body, it becomes a practical choice for mild steel, stainless steel, cast iron, titanium, nonferrous metals, plastics and composites.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 220 Series
- Part No: 220-7500
Key Performance Features:
- 2-flute square end suited to general-purpose milling
- 3/4" diameter supports strong stock removal
- 30° helix supports smooth, controlled chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
