Product Overview

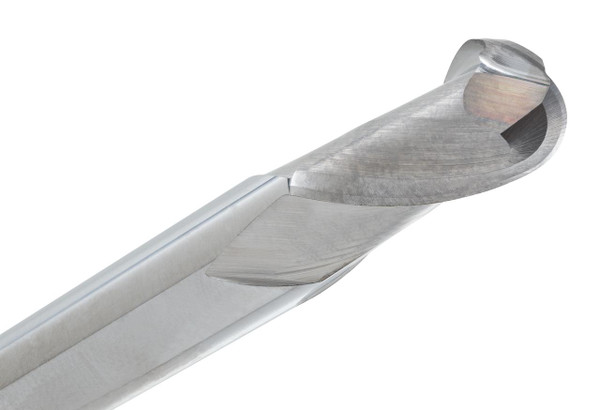

Small-radius finishing at 3/32" diameter comes from the CGS Tool 222-0938, a 2-flute ball end mill from the single-end 222 Series built for detailed 3D milling and smooth surface blending.
The ball nose handles radius cuts cleanly, and 2-flute geometry gives helpful chip clearance in small-diameter work. Uncoated carbide handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0469"
- Helix: 30°
- Design: Single End
- Series: CGS 222 Series
- Part No: 222-0938
Key Performance Features:
- 2-flute ball end design for small-radius contouring and finishing
- Ball nose profile supports smooth 3D surfaces and blended details
- 30° helix helps maintain controlled cutting and chip movement
- Solid carbide construction provides rigidity and cutting accuracy
- Uncoated finish suited for general-purpose machining flexibility
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for profiling, radius milling, finishing passes, and fine surface blending
