Product Overview

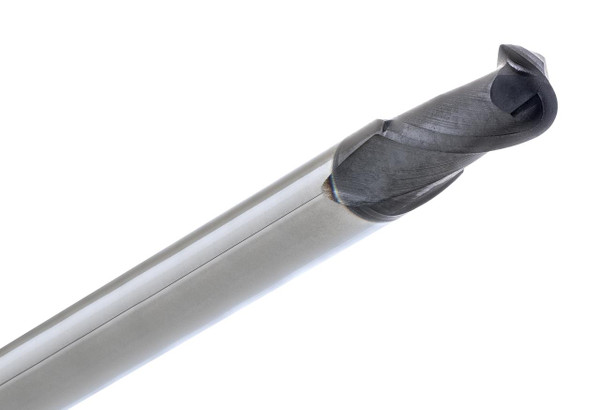

The CGS Tool 222-0938-ALTiN is a 3/32" diameter 2-flute solid carbide ball end mill built for fine profile work, with a .0469" radius that gives a small rounded cutting form for compact pockets and delicate curved details.
The ALTiN coating adds heat and wear resistance under tougher machining conditions, and with a 3/16" length of cut and 1-1/2" overall length, this 222 Series cutter gives controlled ball-end performance in small CNC features.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0469"
- Series: CGS 222 Series
- Part No: 222-0938-ALTiN
Key Performance Features:
- Fine contour milling handled by a 2-flute ball end design
- .0469" radius supports compact rounded feature work
- ALTiN coating adds heat and wear resistance
- 30° helix supports smooth cutting control
- Suited to finishing, blending, and small pocket machining
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
