Product Overview

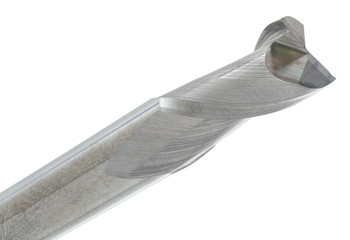

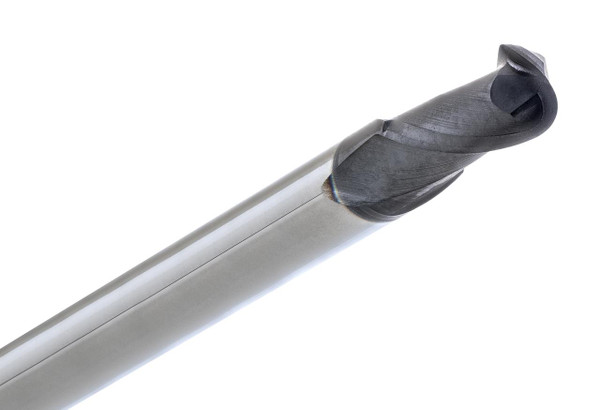

Fine radius work at 1/8" diameter is where the CGS Tool 222-1250-ALTiN of comes in, it’s that 2-flute ball end mill from the 222 Series made for tight contouring and detail finishing, you know.
The ball nose form helps smooth curved areas, and the ALTiN coating gives that small edge extra durability. With 2-flute chip clearances and solid carbide toughness, it can work through mild steels, stainless, cast iron, titanium, non-ferrous stock, plastics, and composites.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/4"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Helix: 30°
- Series: CGS 222 Series
- Part No: 222-1250-ALTiN
Key Performance Features:
- 2-flute ball end design for small-radius contouring and finishing
- ALTiN coating helps improve heat resistance and cutting edge life
- 30° helix supports smooth cutting action in detailed milling work
- Solid carbide construction provides rigidity and precision
- Compact tool size supports fine features and smaller machining details
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for 3D milling, profiling, finishing, and blended surface work
