Product Overview

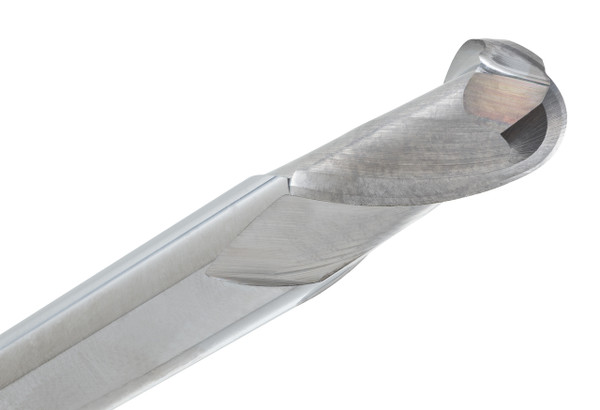

The CGS Tool 222-1250 is a 1/8" diameter 2-flute solid carbide ball end mill from the 222 Series, sized for small profile work and tight contour cuts where a larger cutter would feel too heavy for the feature. It's built for detailed surface finishing and small pocket blending.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .0625" radius matched to its diameter for good control in smaller features. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a practical general-purpose ball end tool.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/4"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0625"
- Series: CGS General Purpose (222 Series)
- Part No: 222-1250
Key Performance Features:
- 2-Flute ball end design for small contour milling
- .0625" radius matched to diameter for fine rounded profiles
- Compact body helps maintain control
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
