Product Overview

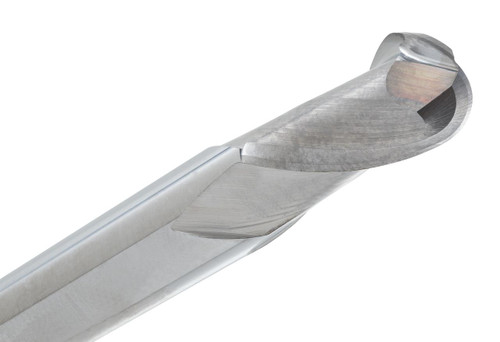

The CGS Tool 222-3750 is a 3/8" diameter 2-flute solid carbide ball end mill from the 222 Series, made for profile milling, contour work, and rounded surface finishing. Its .1875" radius suits clean blending and curved pocket work.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix matched to a simple, dependable cutting feel. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a strong everyday option whenever a smooth radius finish is needed.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1875"
- Series: CGS General Purpose (222 Series)
- Part No: 222-3750
Key Performance Features:
- 2-Flute ball end design for profile and contour work
- .1875" radius matched to diameter for clean rounded cuts
- 30° helix with precision-ground cutting edges
- Single-end solid carbide construction
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
