Product Overview

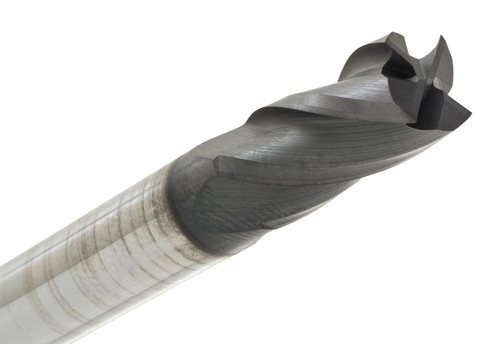

For small general-purpose jobs, you really want accuracy above all and the 240-0938 delivers it at 3/32" diameter. This 4-flute square end mill is a pretty clean, controlled cutter for fine slots, compact profiles, shallow pockets, plunge cuts , and those flat-bottom details.
It’s built with a 30° helix, plus single-end construction so you get steady material removal in day-to-day CNC work. The uncoated solid carbide body keeps things practical as an option for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 240 Series
- Part No: 240-0938
Key Performance Features:
- 4-flute square end built for small milling work
- 3/32" diameter fits compact slots and fine profiles
- 30° helix supports smooth, general-purpose cutting
- Handles plunge, profile, side wall, and flat-bottom milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
