Product Overview

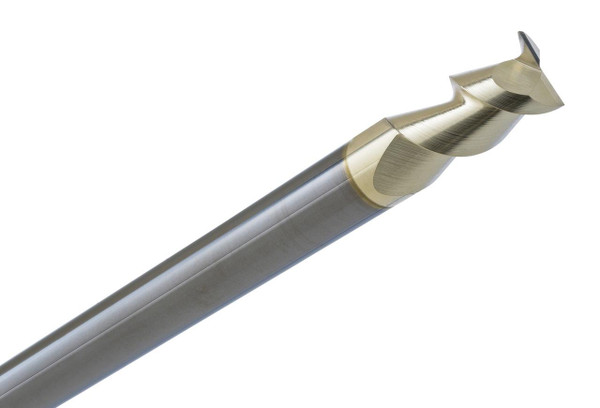

The CGS Tool 2509-S has a 1/4” diameter, 2-flute solid carbide square end mill. It is meant for max material removal, plus really clean surface precision in aluminum, non ferrous metals and plastics. It comes out of the ferocious series, and it’s kind of made for machinists who want high performance at those extreme feed rates.
Made from premium sub micro grain carbide, the 2509-S has a 55° high helix, so you get better chip evacuation, less cutting force, and really solid surface finishes too. The polished cutting edges and a free-cutting geometry help prevent built-up edges, while still keeping exceptional tool life, even during high-speed CNC work.
Tool Specifications:
- Diameter: 1/4”
- Shank: 1/4”
- Length of Cut (LOC): 1/2”
- Overall Length (OAL): 3”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2509-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials.
