Product Overview

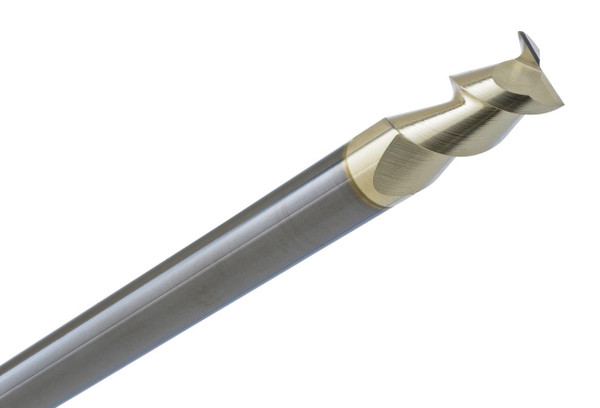

The CGS Tool 2515-Shas a 5/16” diameter, 2 flute solid carbide square end mill. It is made for maximum material removal and surface precision, in aluminum, non-ferrous metals and plastics. It comes from the ferocious series, and it’s meant for machinists who want serious high performance at those extreme feed rates.
Built from premium sub micro grain carbide, the 2515-S has a 55° high helix, for chip evacuation that stays smooth, with reduced cutting forces, and really nice surface finishes. The polished cutting edges and a free-cutting geometry help cut down on built up edges while still keeping an exceptional tool life , even when you’re running high speed CNC jobs.
Tool Specifications:
- Diameter: 5/16”
- Shank: 5/16”
- Length of Cut (LOC): 1/2”
- Overall Length (OAL): 3”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ZrN
- Series: CGS Ferocious
- Part No: 2515-S
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating provides extended tool life and cleaner cuts in non-ferrous materials.
