Product Overview

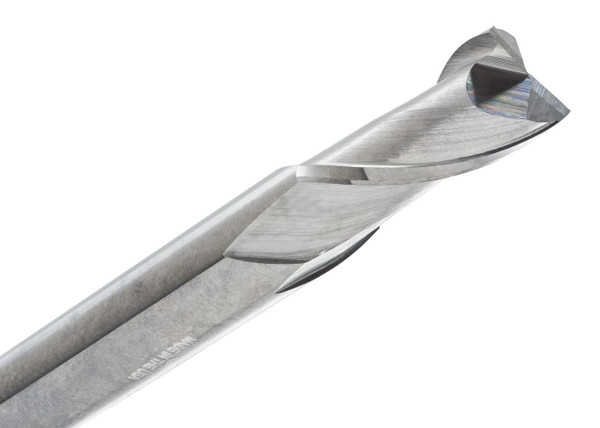

The CGS Tool 420-0938 is a 3/32" diameter 2-flute solid carbide square end mill with a double-end design, built for fine general-purpose milling where compact slots and light plunge cuts need controlled, careful cutting.
With a 3/16" length of cut and 1-1/2" overall length, this 420 Series cutter gives practical cutting value from both ends, and the uncoated carbide body works well across standard shop conditions and mixed CNC materials.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 420 Series
- Part No: 420-0938
Key Performance Features:
- Fine milling work handled by a 2-flute square end design
- Double-end construction gives use from both cutting ends
- 3/32" diameter supports compact machining features
- 30° helix keeps chip movement smooth
- Suited to small slots, profiles, plunge cuts, and flat-bottom work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
