Product Overview

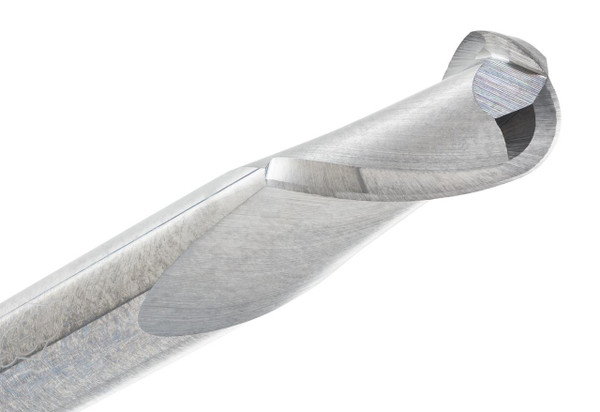

Radius milling with cutting life on both ends is the appeal of the CGS Tool 422-2500, a 1/4" diameter 2-flute ball end mill from the 422 Series built for contouring and smooth blended surfaces.
The ball nose shapes rounded details cleanly, and 2-flute geometry gives good chip space during the cut. This uncoated carbide with that double end construction makes it a workable, practical pick across mild steels, stainless, cast iron, titanium, and nonferrous bits too, plus plastics and composites.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Double End
- Series: CGS 422 Series
- Part No: 422-2500
Key Performance Features:
- 2-flute ball end design for contouring, profiling, and radius milling
- Double-end construction provides two usable cutting ends
- 30° helix supports smooth cutting action and chip movement
- Solid carbide body improves rigidity and tool stability
- Uncoated finish suited for flexible general-purpose milling
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for finishing, 3D surface work, mold details, and curved profiles
