Product Overview

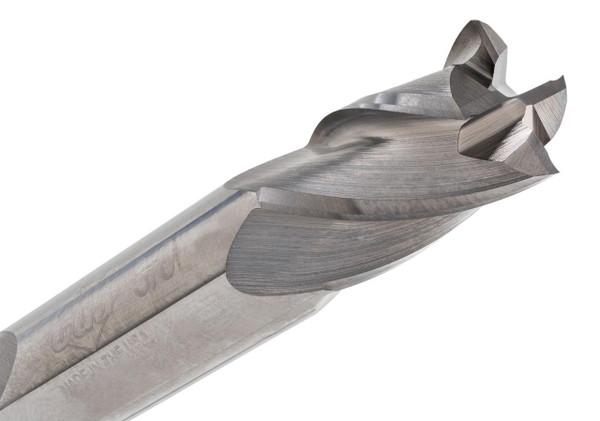

The CGS Tool 440-3750 is a 3/8" diameter 4-flute solid carbide square end mill from the 440 Series, built with a double-end design so shops get a dependable general-purpose cutter with extra usable life from both ends. It's a compact everyday tool.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix matched to clean, controlled cutting. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's useful for slotting, profiling, and plunge work.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS General Purpose (440 Series)
- Part No: 440-3750
Key Performance Features:
- 4-Flute square end design for general-purpose milling
- Double-end body offers use from both ends
- 30° helix with precision-ground cutting edges
- Uncoated construction for standard machining conditions
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
