Product Overview

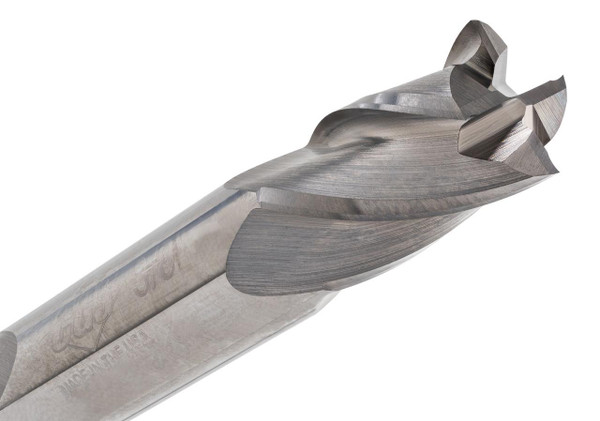

Bigger diameter, same double-end value. The 440-7500 is a 3/4" 4-flute square end mill built for shops running general-purpose jobs that need real material removal, not just fine detail work, and it gives two cutting ends instead of one.
An uncoated solid carbide body keeps this tool straightforward, no special heat management needed, just a dependable 30° helix doing what it's designed to do. It handles slotting, profiling, plunge cuts, side walls, and flat-bottom work across mild steel, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites, making it a reasonable go-to for shops that don't want to keep swapping tools between job types.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 4"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 440 Series
- Part No: 440-7500
Key Performance Features:
- 4-flute square end suited to larger general-purpose jobs
- Double-end design doubles the usable tool life
- 30° helix keeps chip evacuation steady under load
- Handles slotting, profiling, plunging, and side wall work
- Uncoated carbide body performs well in standard shop conditions
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
