Product Overview

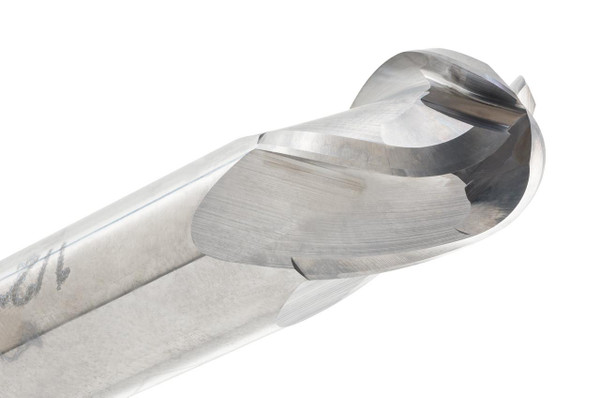

The CGS Tool 442-1719 is an 11/64" diameter 4-flute solid carbide ball end mill from the 442 Series, built with a double-end design for smaller contour details where precision and tool value both matter. It's a compact radius cutter for light profile milling and finish work.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .0859" radius matched to its diameter for clean, controlled general-purpose cutting. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's useful across a range of smaller applications.
Tool Specifications:
- Diameter: 11/64"
- Shank: 3/16"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0859"
- Series: CGS General Purpose (442 Series)
- Part No: 442-1719
Key Performance Features:
- 4-Flute ball end design for small profile work
- Double-end body extends usable cutting life
- .0859" radius matched to diameter for fine rounded features
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
