Product Overview

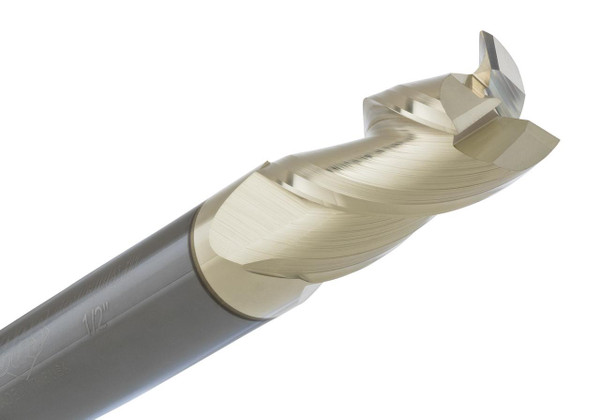

High-feed non-ferrous work at 1/2" diameter is the specialty of the CGS Tool 5330-S, a 3-flute square end mill from the Ferocious 3x 5300 Series built for strong chip movement and smooth surface finish in aluminum machining.
ZrN coating keeps cutting clean in aluminum-focused applications, while variable helix, variable pitch, and wiper end geometry cut down chatter and harmonics. With a 1" length of cut, this cutter gives controlled non-ferrous milling performance in aluminum, copper, brass, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: ZrN
- Series: CGS Ferocious 3x 5300 Series
- Part No: 5330-S
Key Performance Features:
- 3-flute square end built for aluminum and non-ferrous milling
- ZrN coating supports cleaner aluminum cutting
- Wiper end geometry improves surface finish
- Variable helix and variable pitch reduce chatter and harmonics
- Built to hold up under strong feeds and efficient stock removal
- Ideal for aluminum, copper, brass, non-ferrous materials, plastics, and composites
