Product Overview

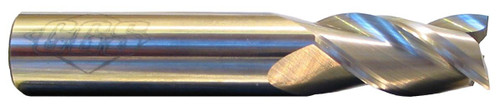

Fast material removal without giving up finish quality, that's the appeal of the 5330 in aluminum work. This 1/2" diameter 3-flute square end mill comes from the Ferocious 3x 5300 Series, built specifically for non-ferrous machining where speed and surface quality both matter on the same cut.
Unique flute geometry, wiper end geometry, variable helix, and variable pitch all work together to keep chatter and harmonics under control even at higher feed rates. That combination lets the 5330 push production speed further than a standard square end mill would tolerate, while still leaving a clean surface across aluminum, copper, brass, plastics, and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 3 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Ferocious 3x 5300 Series
- Part No: 5330
Key Performance Features:
- 3-flute square end built for aluminum and non-ferrous work
- Wiper end geometry improves overall surface finish
- Variable helix and pitch reduce chatter and harmonics
- Built for strong feeds and efficient stock removal
- Uncoated carbide body suited to clean non-ferrous cutting
- Rated for aluminum, copper, brass, plastics, and composites
