Product Overview

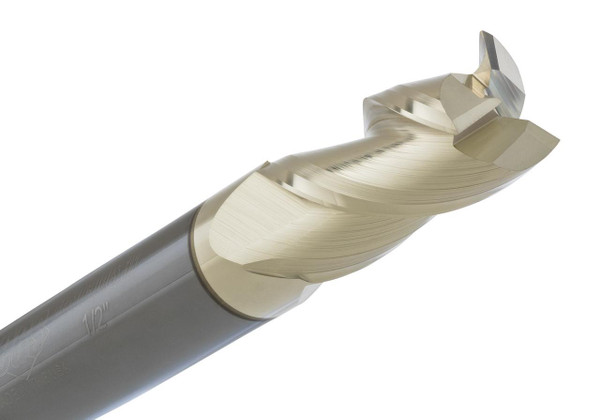

The CGS Tool 5336-S is a 1/2" diameter 3-flute solid carbide square end mill from the Ferocious 3x 5300 Series, sized for shops working aluminum and non-ferrous material where the cutter needs to move fast without leaving a rough wall behind. It's the kind of tool built specifically around one job and doing it well.
Its ZrN coating pairs naturally with aluminum, copper, brass, plastics, and composites, and the wiper end geometry combined with variable helix and variable pitch is engineered to fight chatter and harmonics as feeds climb. It's a tool that stays composed even under aggressive, high-feed stock removal.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 3-1/2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: ZrN
- Radius: No
- Series: Ferocious 3x 5300 Series
- Part No: 5336-S
Key Performance Features:
- 3-Flute square end design for non-ferrous machining
- Wiper end geometry matched to variable helix for a cleaner finish
- Variable pitch reduces chatter and harmonics
- ZrN coating suited to aluminum and soft metals
- Effective across aluminum, copper, and brass
- Also suited to plastics and composites
