Product Overview

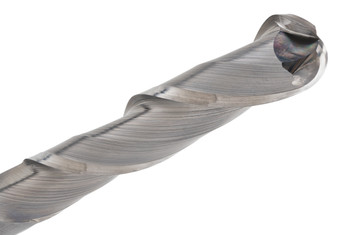

The CGS Tool 822-1250 is a 1/8" diameter 2-flute solid carbide ball end mill built for long-reach contour work, with a .0625" radius that gives a clean rounded cutting form for small curved pockets.
With a 1" length of cut and a 3" total length, this 822 Series cutter of gives added reach for smaller, deep ball-end tasks and such. The uncoated carbide body makes it rather handy for normal shop conditions across mild steels, stainless steel, cast iron, titanium, non-ferrous metals, plastics, and even composites.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0625"
- Series: CGS 822 Series
- Part No: 822-1250
Key Performance Features:
- Long-reach contour milling handled by a 2-flute ball end design
- .0625" radius supports small rounded surface work
- 1" LOC gives useful cutting depth
- 3" OAL supports deeper machining access
- Suited to profile, finishing, blending, and deeper pocket work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
