Product Overview

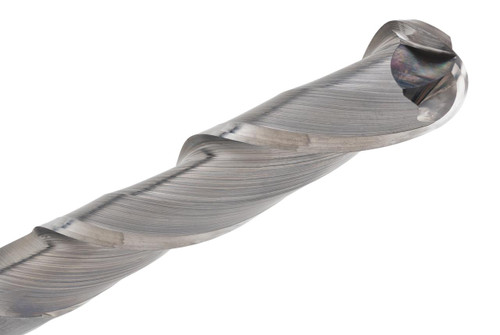

The CGS Tool 822-3750 is a 3/8” diameter 2-flute solid carbide ball end mill from the 822 Series, built with an unusually long 2” length of cut for reaching deeper into pockets and contours than most standard-length tools allow. That extra reach is the whole point of this one.
It's manufactured on precision CNC equipment with the standard 30° helix found across CGS Tool's General Purpose line, and the .1875” ball radius is sized to match the 3/8” diameter for consistent surface finishing. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a practical choice whenever depth of reach matters more than speed.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 2"
- Overall Length (OAL): 4"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1875"
- Series: CGS General Purpose (822 Series)
- Part No: 822-3750
Key Performance Features:
- 2-Flute ball end design with extended 2" length of cut
- Built for deeper pocket and contour reach
- 30° helix with precision CNC manufacturing
- .1875" radius matched to diameter for clean finishing
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
