Product Overview

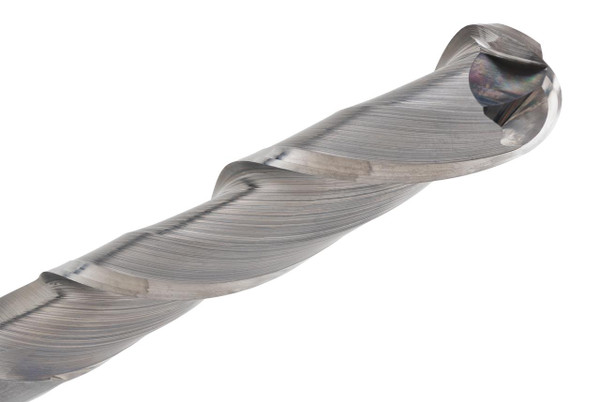

The CGS Tool 822-7500 is a 3/4" diameter 2-flute solid carbide ball end mill built specifically for long-reach profile and contour milling, giving machinists a large radius with real depth of reach. It belongs to the 822 Series, CGS Tool's extended-reach ball nose line.
What sets this tool apart is the 3" length of cut on a 3/4" diameter — a serious combination for deeper curved pockets and extended surface work. The .375" radius keeps the finish smooth, and running a 30° helix, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .375"
- Series: CGS 822 Series
- Part No: 822-7500
Key Performance Features:
- 2-flute ball end design for long-reach contour milling
- .375" radius supports broad rounded surface work
- 3" LOC gives extended cutting depth
- 30° helix helps maintain controlled chip movement
- Handles profile, finishing, blending, and deeper pocket work
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
