Product Overview

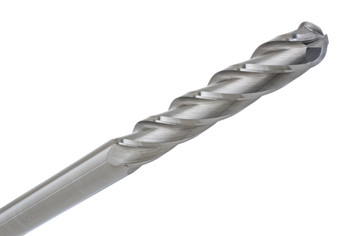

The CGS Tool 842-1000 is a 1" diameter 4-flute solid carbide ball end mill built for long-reach profile work, with a .500" radius that produces a broad rounded cutting form for large curved pockets and surface blending.
With a 3" length of cut and 6" overall length, this 842 Series cutter gives extended reach while maintaining controlled ball-end cutting, and the uncoated carbide body works well across standard shop conditions and mixed CNC materials.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 3"
- Overall Length (OAL): 6"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .500"
- Series: CGS 842 Series
- Part No: 842-1000
Key Performance Features:
- Long-reach contour milling handled by a 4-flute ball end design
- .500" radius supports broad rounded surface work
- 3" LOC gives extended cutting depth
- 6" OAL supports deeper machining access
- Suited to finishing, blending, and deeper pocket work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
