Product Overview

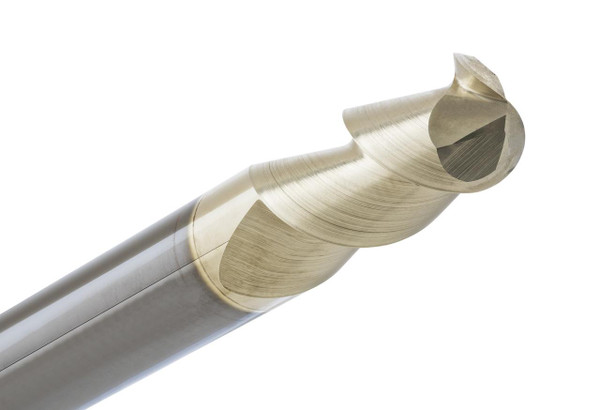

The CGS Tool BN2006-S comes in as a 1/4” diameter, two-flute solid carbide ball end mill that’s meant for high-speed machining of aluminum, non ferrous metals, plastics and composites. It’s part of the BN2000 Series, Ferocious, and it tends to push exceptional material removal rates, kind of smooth surface finishes, and dependable output when you’re running tough CNC milling jobs ,every day.
Built out of premium solid carbide ,the BN2006-S has CGS Tool’s own 55° high helix geometry which helps with chip evacuation, and also cuts down the cutting forces at the same time. The precision-ground ball end form works well for contouring profiling, and that 3D surface style of work. Then there’s the ZrN coating that helps reduce built-up edge and it also supports longer tool life in aluminum and other non ferrous materials. Overall, its advanced geometry supports more aggressive feed rates and higher machining efficiency.
Tool Specifications:
- Diameter: 1/4”
- Shank: 1/4”
- Length of Cut (LOC): 3/4”
- Overall Length (OAL): 2-1/2”
- Flutes: 2 - Ball End
- Radius: .125”
- Material: Solid Carbide
- Coating: ZrN
- Series: BN2000 Series Ferocious
- Part No: BN2006-S
Key Performance Features:
- 2-Flute ball end design for contouring and 3D machining applications
- Original 55° high helix geometry for superior chip evacuation
- ZrN coating helps reduce material buildup and improve tool life
- Supports high chip loads and aggressive feed rates
- Excellent surface finish in aluminum and non-ferrous materials
- Ideal for profiling, finishing, and complex surface machining
- Delivers reliable performance in plastics and composite materials
- Engineered for high-speed CNC milling and efficient material removal
