Product Overview

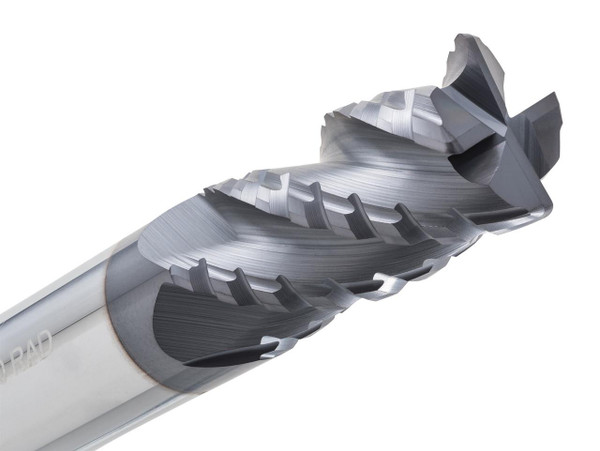

The Beast Series CR1020-ALTiN 4-flute corner radius end mill is made for demanding milling stuff, roughing, side milling, and high-speed machining. It aims to help machinists keep efficient chip control and steady cutting actions even in tough CNC setups. It lives in the Beast Series lineup, so you get a strengthened corner radius layout along with premium solid-carbide build quality, which together support durability, dimensional accuracy, and dependable results during long, continuous cutting cycles.
The ALTiN coating ramps up heat resistance, boosts wear protection, and helps stretch the useful life of the cutting edge when you are machining steels, stainless steel, and hardened materials. Plus the 4-flute corner radius design gives sturdier edge strength, helps cut down on chipping, and makes the feed feel smoother through roughing and side milling operations.
Tool Specifications:
- Diameter: 1/2"
- Shank Diameter: 1/2"
- Length of Cut: 1-1/4"
- Overall Length: 3"
- Flutes: 4
- Style: Corner Radius
- Coating: ALTiN
- Material: Solid Carbide
- Series: Beast Series
- Part Number: CR1020-ALTiN
Key Performance Features:
- 4-flute corner radius design supports stable cutting during roughing and side milling.
- Solid carbide construction helps with strength, accuracy, and tool life.
- ALTiN coating improves heat resistance and helps protect the cutting edge from wear.
- Strengthened corner radius supports longer tool life in demanding applications.
- Supports efficient chip control during continuous cutting operations.
- Works well for roughing, side milling, and high-speed machining.
- Suitable for steels, stainless steel, and hardened materials.
- Best suited for demanding CNC milling applications that require stability and reliable performance.
