Product Overview

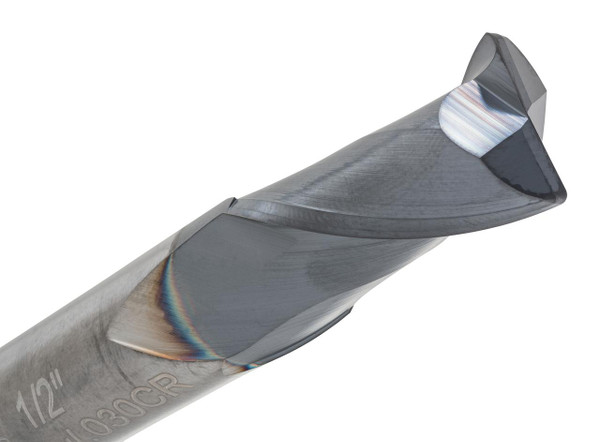

The CGS Tool CR123-5000.125-ALTiN is a 1/2" diameter 2-flute solid carbide corner-radius end mill made for general milling tasks, where the .125" corner radius helps reinforce the edge and gives you controlled radius corners too
The ALTiN coating brings extra heat and wear resistance for harder cutting conditions, and with a 1" length of cut, plus 3" overall length this CR123 Series cutter is handy for slotting, profiling, shoulder work, and side wall milling.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 - Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .125"
- Series: CGS CR123 Series
- Part No: CR123-5000.125-ALTiN
Key Performance Features:
- General-purpose milling handled by a 2-flute corner radius design
- .125" radius improves cutting-edge strength
- ALTiN coating supports better heat and wear resistance
- 30° helix gives smooth cutting control
- Suited to slotting, profiling, shoulder work, and side wall milling
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
