Product Overview

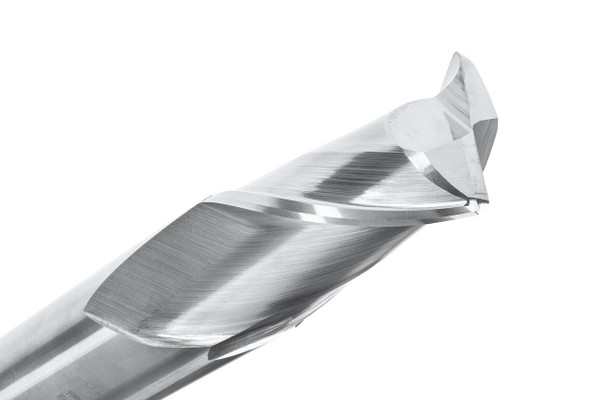

Bigger general-purpose jobs still need chip room and corner strength together, and the CR123-7500.125 provides both at 3/4" diameter. This 2-flute corner radius end mill gives more chip clearance than a 4-flute equivalent, while the .125" radius adds real support to the cutting edge.
With a 30° helix and uncoated carbide body, this CR123 Series cutter handles slotting, profiling, shoulder work, and side wall milling without any special setup. It's a solid fit for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites wherever a bigger corner radius tool is called for.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 2 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .125"
- Series: CR123 Series
- Part No: CR123-7500.125
Key Performance Features:
- 2-flute corner radius design adds extra edge strength
- .125" radius helps reduce sharp-corner wear
- 30° helix supports smooth, general-purpose cutting
- Handles slotting, profiling, and shoulder milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
