Product Overview

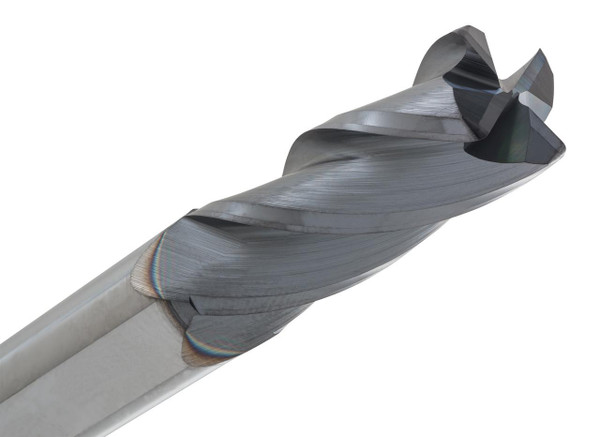

The CGS Tool CR143-1000.020-ALTiN is a 1" diameter 4-flute solid carbide corner radius end mill for bigger general-purpose jobs where the .020" radius helps the corner hold up under load without changing the finished profile much. It's a small detail that makes a real difference in tool life at this size.
The ALTiN coating adds heat and wear resistance for the tougher or longer-running work, and the 30° helix keeps the cut moving cleanly. This CR143 Series tool handles profiling, shoulder work, side walls, and radius-corner features, and it runs across mild steel, stainless, cast iron, titanium, non-ferrous stock, plastics, and composites.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 Flute
- End Style: Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .020"
- Series: CR143 Series
- Part No: CR143-1000.020-ALTiN
Key Performance Features:
- 4-flute corner radius geometry adds edge support
- .020" radius helps resist sharp-corner wear
- ALTiN coating adds heat and wear resistance
- 30° helix keeps the cut running smoothly
- Handles profiling, shoulder milling, and side wall work
- Runs across mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
