Product Overview

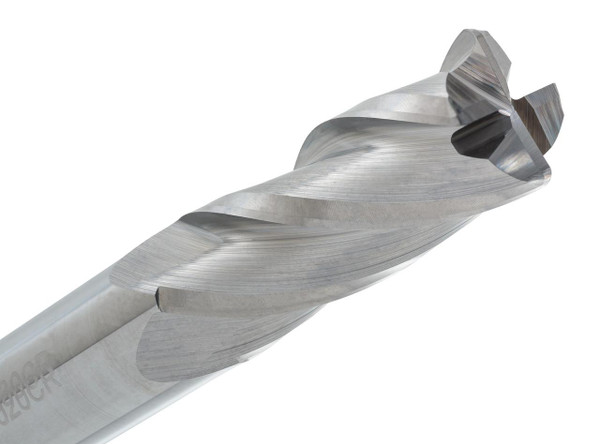

The CGS Tool CR143-1000.020 is a 1" diameter 4-flute solid carbide corner radius end mill sized for larger general-purpose milling, where a .020" corner radius helps support the cutting edge while keeping machined corners consistent.
Single-end construction and a 30° helix make this CR143 Series cutter useful for profiling, shoulder milling, slotting, and side wall work, and the uncoated carbide body keeps it practical for standard shop conditions.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 - Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .020"
- Series: CGS CR143 Series
- Part No: CR143-1000.020
Key Performance Features:
- Larger milling work handled by a 4-flute corner radius design
- .020" radius improves cutting-edge strength
- 30° helix supports smooth chip movement
- Suited to profiling, shoulder milling, slotting, and side wall work
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
