Product Overview

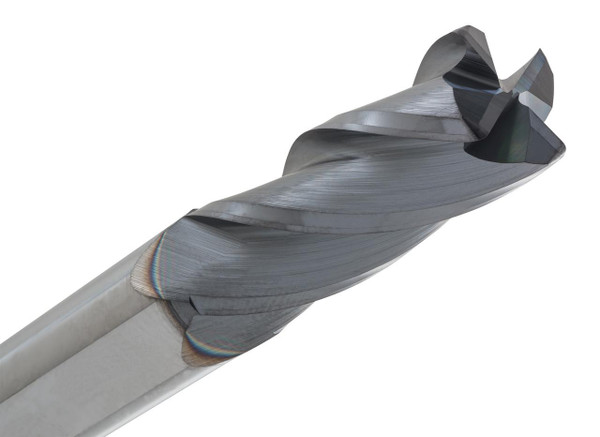

The CGS Tool CR143-1250.010-ALTiN is a 1/8" diameter 4-flute solid carbide corner radius end mill built for compact general-purpose milling, where a .010" corner radius protects the small cutting edge without adding bulk.
The ALTiN coating adds heat and wear resistance under tougher machining conditions, and with a 1/2" length of cut and 1-1/2" overall length, this cutter is useful for small profiling, shoulder milling, and side wall work.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Corner Radius
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .010"
- Series: CGS CR143 Series
- Part No: CR143-1250.010-ALTiN
Key Performance Features:
- Compact milling work handled by a 4-flute corner radius design
- .010" radius protects the cutting edge
- ALTiN coating supports better heat and wear resistance
- 30° helix provides steady cutting control
- Suited to small profiling, shoulder milling, and side wall work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
