Product Overview

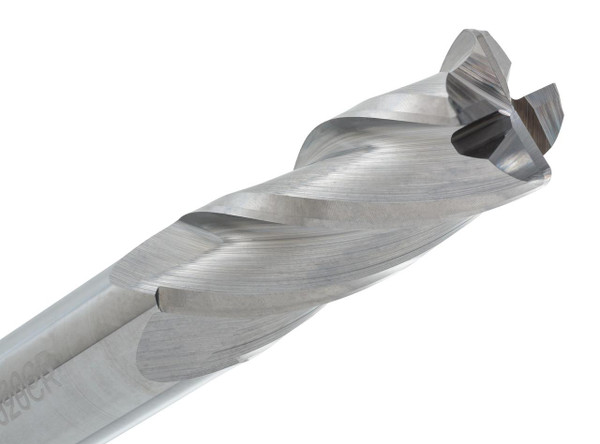

The CGS Tool CR143-1250.010 is a 1/8" diameter 4-flute solid carbide corner radius end mill built specifically for small general-purpose milling where even a slight radius can save a corner from chipping. It belongs to the CR143 Series, CGS Tool's corner radius line.
What sets this tool apart is the .010" radius, small enough to keep the machined detail looking clean while still giving the corner meaningfully more strength than a sharp edge. Running a 30° helix in a single-end build, it handles profiling, shoulder work, side wall milling, and small radius-corner applications.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .010"
- Series: CR143 Series
- Part No: CR143-1250.010
Key Performance Features:
- 4-flute corner radius design for small milling work
- .010" radius helps reduce sharp-corner wear
- 30° helix supports smooth general-purpose cutting
- Handles profiling, shoulder milling, and side wall work
- Single-end solid carbide build
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
