Product Overview

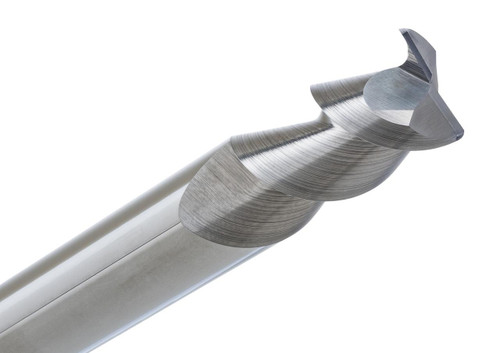

The CGS Tool CR2003.030-S comes in a 3/16” diameter, 2-flute solid carbide corner radius end mill, built for high speed machining of aluminum, non ferrous metals plastics, and composites. In the CR2000 Series, Ferocious this tool sort of delivers improved edge strength, really nice surface finishes and the more consistent kind of performance you want when you’re doing precision CNC milling.
Made with premium solid carbide, the CR2003.030-S includes CGS Tool’s original 55° high helix geometry, so chip evacuation is efficient and cutting forces stay reduced. The corner radius approach helps with durability too, because it cuts down stress concentration at the cutting edge, which in turn minimizes chipping and boosts surface finish quality. Then there’s the ZrN coating , it boosts wear resistance, helps reduce built up edge, and can extend tool life particularly in aluminum and other non ferrous materials.
Tool Specifications:
- Diameter: 3/16”
- Shank: 3/16”
- Length of Cut (LOC): 5/8”
- Overall Length (OAL): 2”
- Flutes: 2 - Corner Radius
- Radius: .030”
- Material: Solid Carbide
- Coating: ZrN
- Series: CR2000 Series Ferocious
- Part No: CR2003.030-S
Key Performance Features:
- 2-flute corner radius design for improved edge strength and durability
- Original 55° high helix geometry for smooth cutting and efficient chip evacuation
- ZrN coating reduces built-up edge and improves tool life
- Enhanced wear resistance for high-speed machining applications
- Ideal for aluminum, copper, brass, plastics, and composites
- Excellent for contouring, profiling, and finishing operations
- Produces superior surface finishes compared to sharp corner tools
- Engineered for stable and consistent CNC machining performance
