Product Overview

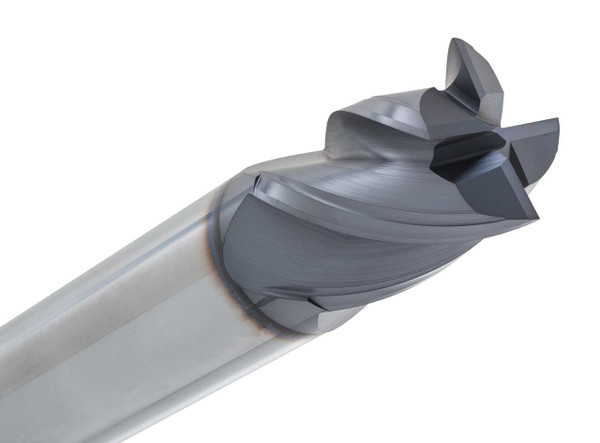

The CGS Tool HV240-7500 is a 3/4" diameter 4-flute solid carbide square end mill built for shops running tougher materials at higher feed rates without wanting the harmonics that usually come with it. It belongs to the Hi-Velocity HV240 Series, CGS Tool's variable helix square end line made for demanding, higher-throughput machining.
The variable helix and offset indexing break up the vibration pattern that would otherwise build into chatter on a straight-flute tool, and the ALTiN coating helps the edge hold up at the higher speeds this design is meant to run at. Solid carbide throughout, the HV240-7500 is rated for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Helix: Variable Helix
- Design: Single End
- Series: CGS HV240 Hi-Velocity Series
- Part No: HV240-7500
Key Performance Features:
- 4-flute square end design for high-performance milling
- Variable helix with offset indexing reduces chatter and harmonics
- ALTiN coating supports heat resistance and longer tool life
- Square end profile handles clean slotting, profiling, and pocketing
- Solid carbide body stays rigid in demanding conditions
- Rated for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
- Strong option for roughing, finishing, and higher-feed milling
