Product Overview

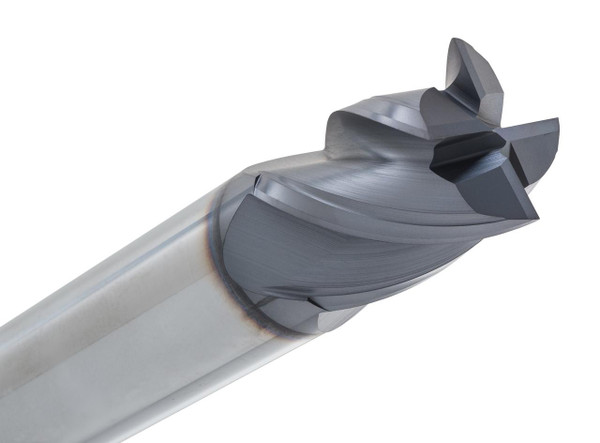

The CGS Tool HV240-1875 has a 3/16” diameter, 4-flute solid carbide square end mill, made for high-performance machining in steels and alloys. It’s set up as part of the Hi-Velocity (HV) Series, so you get this unmatched strength, speed, and precision for roughing, then also finishing work, depending on how you run it.
Made from premium micro-grain carbide, the HV240-1875 has a variable helix, variable index geometry, plus an ALTiN coating for really strong heat resistance and tool life when you’re turning at high RPM. The free-cutting style helps with surface finishes and chip evacuation, while keeping vibration and wear down so machinists can push feeds and speeds further without giving up accuracy.
Tool Specifications:
- Diameter: 3/16”
- Shank: 3/16”
- Length of Cut (LOC): 3/8”
- Overall Length (OAL): 2”
- Flutes: 4 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: ALTiN (Aluminum Titanium Nitride)
- Series: CGS Hi-Velocity (HV)
- Part No: HV240-1875
Key Performance Features:
- Variable Helix & Index for smoother, quieter cutting
- ALTiN coating for superior oxidation resistance
- Exceptional performance at high RPMs
- Improved surface finish on steels, stainless steels, and hardened materials
- Ideal for slotting, profiling, and finishing operations
- Reduced neck & Weldon flats available upon request
