Product Overview
DIA=4mm - SHANK=4mm - LOC=14mm - OAL=50mm - FLUTES=4 Flute - END STYLE=Corner Radius - COATING=ALTiN - Radius=.25mm-Solid Carbide End Mills | HV143 Series | 4 Flute | Radius end | HV HI-VELOCITY | Variable helix and off set indexes reduce chatter and harmonics to improve surface finishes, feed rates and tool life. There is NO Equal to the industry's BEST variable helix end mill | Variable Helix | Single End >>> Applications: Steels, Stainless, Cast Iron, Titanium, Alloys, Inconel, Select Non-Ferrous Materials

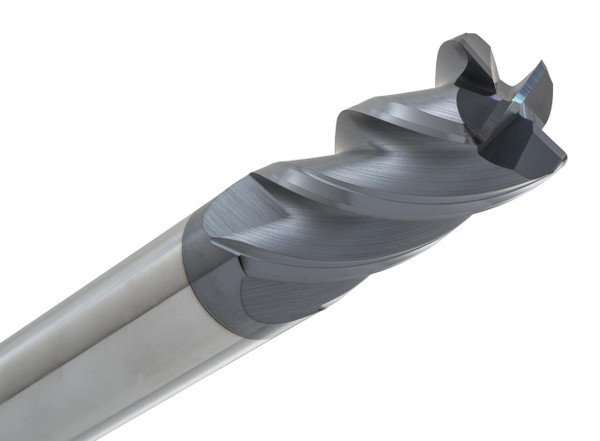

HVM143-040 | 4mm 4-Flute Corner Radius End Mill | Hi-Velocity Series
The HVM143-040 from CGS Tool is a 4mm solid carbide end mill, 4-flute, corner radius profile. Built for steel, stainless, and hardened alloy work — roughing and finishing both.
Micro-grain carbide stock is used throughout. The flutes carry a variable helix and variable index grind, which breaks up harmonic vibration and keeps the cut stable at high RPM. ALTiN coating goes on top of that — it handles oxidation and thermal buildup well, so the edge holds longer on harder materials.
At 14mm LOC and 50mm OAL, the tool covers slotting, profiling, and finishing without a swap. Chip flow stays clean through the geometry.
Tool Specifications:
Diameter:4mm
Shank: 4mm
Length of Cut: (LOC)14mm
Overall Length: (OAL)50mm
Flutes: 4 – Corner Radius Material Solid Micro-Grain Carbide
Coating: ALTiN (Aluminum Titanium Nitride)
Series: CGS Hi-Velocity (HV)
Part No: HVM143-040
Key Performance Features:
- Variable helix and variable index grind — cuts vibration, stabilizes tool path.
- ALTiN coating — oxidation and heat resistant at high spindle speeds.
- Rated for steels, stainless steels, and hardened materials.
- Slotting, profiling, finishing — single tool.
- Reduced neck and Weldon flats available on request.
