Product Overview

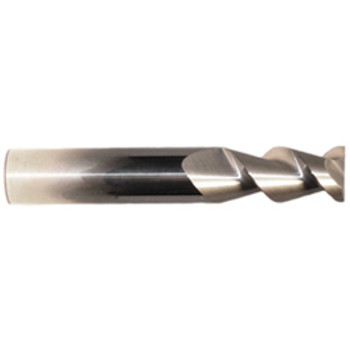

The CGS Tool M2103-S is a 5mm diameter, 2-flute solid carbide square end mill, built with high speed machining of aluminum in mind plus non-ferrous metals, plastics, and also composite materials. As part of the 2000 Series Ferocious, this kind of cutting tool is meant to push exceptional material removal rates, give strong chip evacuation, and keep machining performance steady in tough CNC milling work.
Made from premium solid carbide, the M2103-S carries CGS Tool’s original 55° high helix geometry, it helps chip flow move more efficiently, cuts down on cutting forces, and still lets you run aggressive feed rates. The square end design gives clean , accurate cuts, so it works well for slotting, pocketing, profiling, contouring, and finishing type operations. With a 16mm length of cut, and a 50mm overall length you get a balance of reach, rigidity , and general machining stability. The ZrN coating adds wear resistance, reduces built-up edge formation, and improves results when you are machining aluminum and other non-ferrous materials, too.
Tool Specifications:
- Diameter: 5mm
- Shank: 5mm
- Length of Cut (LOC): 16mm
- Overall Length (OAL): 50mm
- Flutes: 2 Flute
- End Style: Square End
- Radius: None
- Material: Solid Carbide
- Coating: ZrN
- Helix Angle: 55°
- Series: 2000 Series Ferocious
- Part No: M2103-S
Key Performance Features:
- 2-flute square end design provides efficient chip evacuation and precise cutting performance.
- Original 55° high helix geometry reduces cutting forces and supports aggressive feed rates.
- ZrN coating improves wear resistance and reduces built-up edge formation.
- Optimized for high-speed machining of aluminum and non-ferrous materials.
- Square end geometry delivers sharp corners and accurate machining results.
- 16mm length of cut supports deeper milling and profiling applications.
- 50mm overall length provides excellent reach and machining stability.
