Product Overview

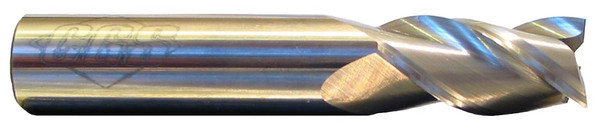

The CGS Tool M5412-UC is an 8mm diameter 3-flute solid carbide square end mill from the Ferocious 3x 5300 Series, sized for aluminum and non-ferrous cutting where speed, chip flow, and finish quality all need to work together. It's built for shops running metric parts in soft materials.
Its wiper end geometry combined with variable helix and variable pitch is engineered to keep chatter under control, and the uncoated finish keeps the cutting edge sharp and direct. Rated for aluminum, copper, brass, plastics, and composites, it delivers a clean wall and floor finish where that matters most.
Tool Specifications:
- Diameter: 8mm
- Shank: 8mm
- Length of Cut (LOC): 20mm
- Overall Length (OAL): 63mm
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Ferocious 3x 5300 Series
- Part No: M5412-UC
Key Performance Features:
- 3-Flute metric design for non-ferrous milling
- Wiper end geometry matched to a cleaner surface
- Variable helix and pitch reduce chatter
- Uncoated construction for fast feeds and strong removal
- Effective across aluminum, copper, and brass
- Also suited to plastics and composites
