Product Overview

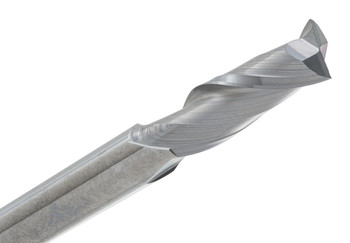

The CGS Tool 120-4062-ALTiN sort of is , in a way , a 13/32" in diameter 2-flute solid carbide square end mill. It is made for everyday general milling tasks, like, true workhorse stuff. You basically keep it around for slotting and profiling , also for plunging work, side wall moves, and those flat bottom cuts where nothing fancy is needed really. Just a dependable cutter that gets it done , no drama , no extra fuss.
The ALTiN coating helps protect the edge in the tougher or longer-running jobs where heat starts to become a factor, and the 30° helix keeps chip flow consistent. It's a single-end, 120 Series tool, and it holds up well across mild steel, stainless, cast iron, titanium, non-ferrous stock, plastics, and composites.
Tool Specifications:
- Diameter: 13/32"
- Shank: 7/16"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-3/4"
- Flutes: 2 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 120 Series
- Part No: 120-4062-ALTiN
Key Performance Features:
- 2-flute square end built for general-purpose milling
- ALTiN coating adds heat and wear resistance
- 13/32" diameter suits mid-size milling features
- 30° helix keeps chip movement smooth
- Handles slotting, profiling, plunging, and side wall work
- Suited to mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
