Product Overview

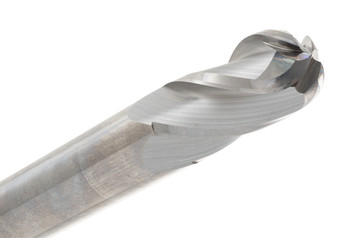

Curved pockets at a slightly larger scale need that matching radius, and the 142-4062-ALTiN kind of provides it at 13/32" diameter with a .2031" radius. This 4-flute ball end mill gives a smooth, rounded cutting form for curved pockets , surface blending, and finishing work.
The ALTiN coating helps improve heat plus wear resistance during more demanding milling conditions too. With a 1" length of cut, and a 2-3/4" overall length, plus a 30° helix angle, this 142 Series cutter gives controlled ball end performance across many CNC materials.
Tool Specifications:
- Diameter: 13/32"
- Shank: 7/16"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-3/4"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .2031"
- Series: 142 Series
- Part No: 142-4062-ALTiN
Key Performance Features:
- 4-flute ball end built for profile and contour milling
- .2031" radius supports smooth, rounded surface work
- ALTiN coating improves heat and wear resistance
- 30° helix supports steady, general-purpose cutting
- Handles finishing, blending, and curved pocket machining
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
