Product Overview

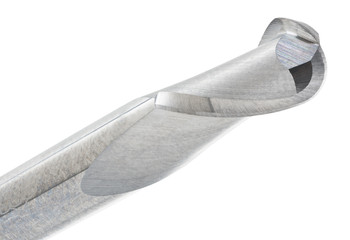

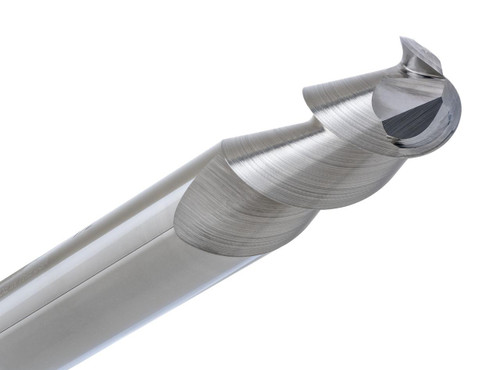

The CGS Tool 2001 has a 1/8” diameter, 2-flute solid carbide square end mill, made to push maximum material removal while keeping surface precision steady, mostly for aluminum, non-ferrous metals and plastics. It’s from the Ferocious Series as it is aimed at machinists who expect high output even working with extreme feed rates.
Made from premium sub-micro grain carbide, the 2001 includes a 55° high helix setup, which helps chip evacuation feel smoother, lowers cutting forces, and gives that clean surface finish. Also, the polished cutting edges and free-cutting geometry help cut down on built-up edges, while still keeping outstanding tool life, even during high-speed CNC use.
Tool Specifications:
- Diameter: 1/8”
- Shank: 1/8”
- Length of Cut (LOC): 1/2”
- Overall Length (OAL): 1-1/2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2001
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
