Product Overview

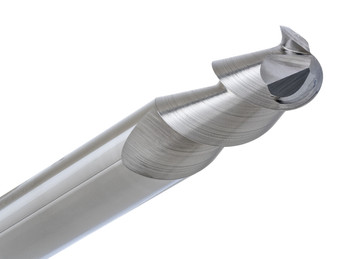

The CGS Tool 2069 has a 1” diameter, 2-flute solid carbide square end mill. It is made so it can do maximum stock removal while still keeping pretty high surface precision, mostly for aluminum, non-ferrous metals and plastics and it is built from the ferocious series, for machinists who want top notch performance even when they run at extreme feed rates.
Made with premium sub-micro grain carbide, the 2069 comes with a 55° high helix that helps with chip clearing, it lowers cutting loads and it leaves a really clean finish behind. Also, the polished cutting edges and the free-cutting geometry keep the built up edge down quite a bit ,and they also help the tool last longer, even when you throw it into high-speed CNC work, day after day, like it’s nothing.
Tool Specifications:
- Diameter: 1”
- Shank: 1”
- Length of Cut (LOC): 4”
- Overall Length (OAL): 7”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2069
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request

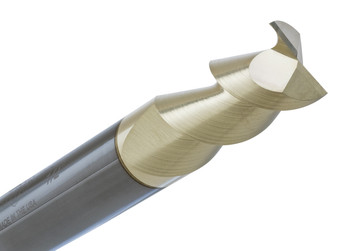

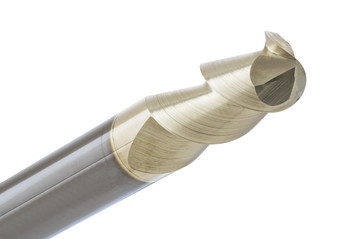

- ZrN coating option available for extended life and cleaner cuts.
